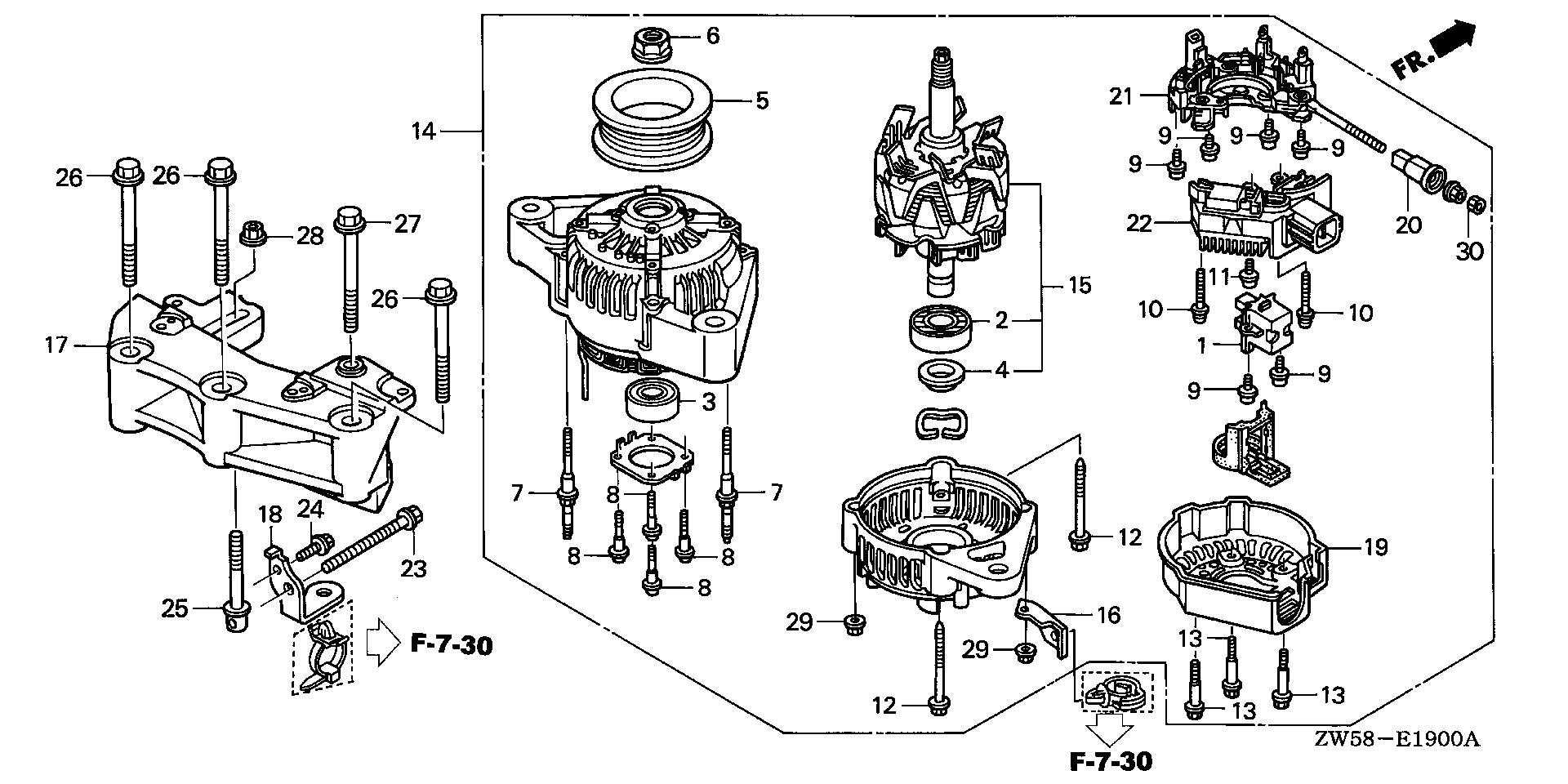

Mid - Large Outboard Engines (25 - 250hp) BF BF130 BF130A3 XCA BZBH-1400001-1499999 ALTERNATOR - Peak Honda World

WARNING: California Prop 65 Information

Ref No

Part Number

Description

Serial Range

Qty

Price

Ref No
1

Part Number
31105-PZ1-003

Description
HOLDER ASSY., BRUSH

Serial Range
1101776 - 9999999

Qty

Price
$71.37

Ref No
2

Part Number
31111-PJ7-013

Description
BEARING, RR.

Serial Range
1000001 - 9999999

Qty

Price
$25.02

Ref No
3

Part Number
31114-PJ7-013

Description
BEARING, FR.

Serial Range
1000001 - 9999999

Qty

Price
$47.82

Ref No
4

Part Number
31138-PD1-004

Description
COVER, BEARING

Serial Range
1000001 - 9999999

Qty

Price
$13.83

Ref No
5

Part Number
31141-P64-003

Description
PULLEY

Serial Range
1000001 - 9999999

Qty

Price
$64.67

Ref No
6

Part Number
31142-PD1-004

Description
NUT, PULLEY LOCK

Serial Range
1000001 - 9999999

Qty

Price
$11.14

Ref No
7

Part Number
31145-PE9-941

Description
BOLT, STUD

Serial Range
1000001 - 9999999

Qty

Price
$8.35

Ref No
8

Part Number
31146-PJ7-003

Description
SCREW

Serial Range
1000001 - 9999999

Qty

Price
$2.49

Ref No
9

Part Number
31147-PT0-003

Description
SCREW-WASHER

Serial Range
1000001 - 9999999

Qty

Price
$4.28

Ref No
10

Part Number
31148-PD1-004

Description
SCREW-WASHER (4X25)

Serial Range
1000001 - 9999999

Qty

Price
$4.57

Ref No
11

Part Number
31149-PZ1-003

Description
SCREW

Serial Range
1000001 - 9999999

Qty

Price
$2.58

Ref No
12

Part Number
31152-PE9-942

Description
BOLT-WASHER

Serial Range
1000001 - 9999999

Qty

Price
$4.53

Ref No
13

Part Number
31153-PZ1-003

Description
BOLT

Serial Range
1000001 - 9999999

Qty

Price
$2.80

Ref No
14

Part Number
31630-ZW5-003

Description
ALTERNATOR ASSY.

Serial Range
1000001 - 9999999

Qty

Price
$868.96

Ref No
15

Part Number
31631-ZW5-003

Description
ROTOR ASSY.

Serial Range
1000001 - 9999999

Ref No
16

Part Number
31633-ZW5-003

Description
BRACKET, HARNESS CLAMP

Serial Range
1000001 - 9999999

Qty

Price
$9.59

Ref No
17

Part Number
31636-ZW5-000

Description
BRACKET, ALTERNATOR

Serial Range
1000001 - 9999999

Qty

Price
$175.77

Ref No
18

Part Number
31637-ZW5-010

Description
STAY, ALTERNATOR

Serial Range
1000001 - 9999999

Qty

Price
$8.17

Ref No
19

Part Number
31639-ZW5-003

Description
END COVER, RR.

Serial Range
1000001 - 9999999

Qty

Price
$123.50

Ref No
20

Part Number
31644-ZW5-003

Description
BUSH, INSULATION

Serial Range
1000001 - 9999999

Ref No
21

Part Number
31710-ZW5-003

Description
RECTIFIER ASSY.

Serial Range
1000001 - 9999999

Qty

Price
$202.29

Ref No
22

Part Number
31750-ZY6-003

Description
REGULATOR ASSY.

Serial Range
1000001 - 9999999

Qty

Price
$187.91

Ref No
23

Part Number
90011-ZW5-010

Description
BOLT, SPECIAL ADJUSTER

Serial Range
1000001 - 9999999

Ref No
24

Part Number
90021-ZY3-000

Description
BOLT, FLANGE (6X14)

Serial Range
1000001 - 9999999

Ref No
25

Part Number
90031-ZW5-010

Description
BOLT, TENSIONER

Serial Range
1000001 - 9999999

Qty

Price
$13.70

Ref No
26

Part Number
90162-ZW4-000

Description
BOLT, FLANGE (10X70)

Serial Range
1000001 - 9999999

Ref No
27

Part Number
90163-ZW4-000

Description
BOLT, FLANGE (10X80)

Serial Range
1000001 - 9999999

Ref No
28

Part Number
90203-ZW5-010

Description
NUT, FLANGE (8MM)

Serial Range
1000001 - 9999999

Qty

Price
$2.51

Ref No
29

Part Number
90231-PD1-014

Description
NUT-WASHER (5MM)

Serial Range
1000001 - 9999999

Qty

Price
$5.93

Ref No
30

Part Number
94001-06080-0S

Description
NUT, HEX. (6MM)

Serial Range
1000001 - 9999999

Qty

Price
$1.99
